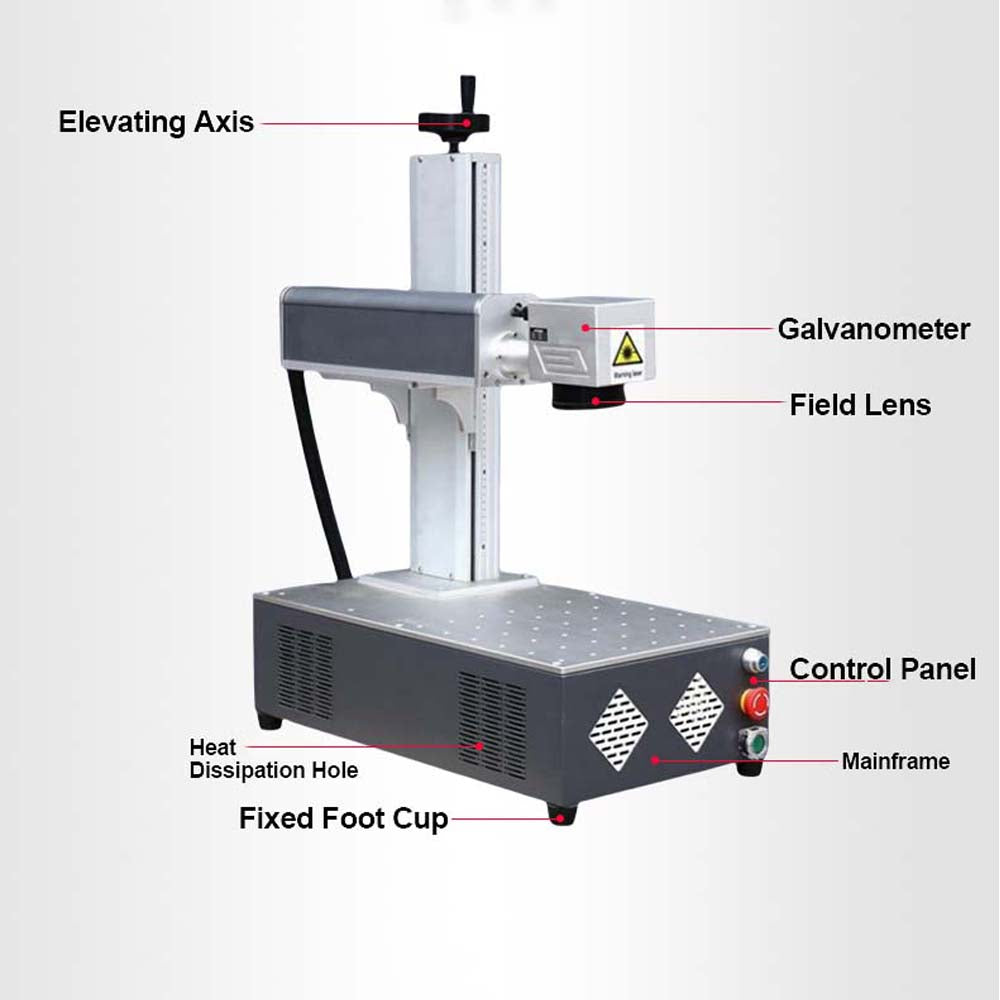

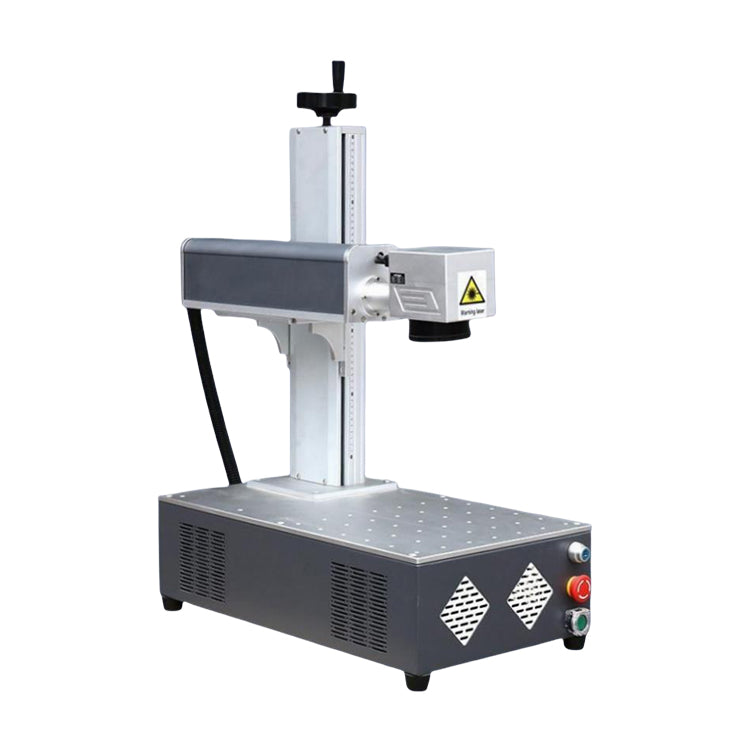

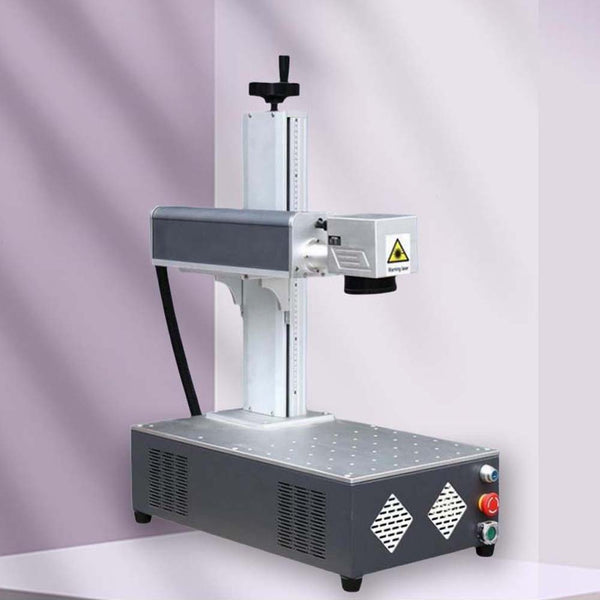

Portable Fiber Laser Marking Machine
PRODUCT DETAILS
This Portable Fiber Laser Marking Machine is a powerful tool for precise, efficient, and permanent marking on various materials, including metal, plastic, and wood. With its portable design, it can be easily transported to any location for on-site marking capabilities. Increase productivity and accuracy with this versatile tool.

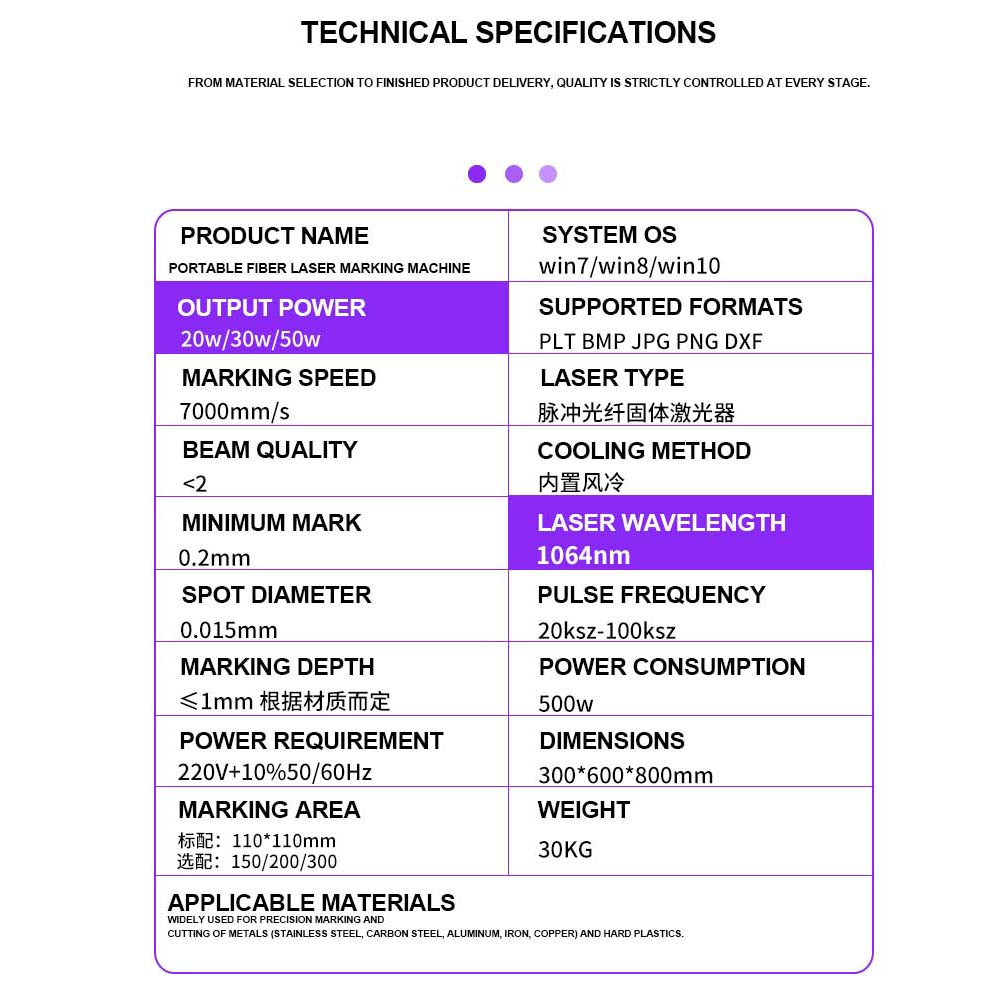

| Specification | Description |
|---|---|
| Output Power | 20W / 30W / 50W |
| Marking Speed | 7000 mm/s |
| Beam Quality | <2 |
| Minimum Marking | 0.2 mm |
| Spot Diameter | 0.015 mm |
| Marking Depth | ≤1 mm (depending on material) |
| Power Requirement | 220V ±10%, 50 / 60Hz |
| Marking Area | Standard: 110×110 mm; Optional: 150 / 200 / 300 mm |
| Supported Formats | PLT, BMP, JPG, PNG, DXF |
| Laser Type | Pulsed Fiber Solid-State Laser |
| Cooling Method | Built-in Air Cooling |
| Laser Wavelength | 1064 nm |
| Pulse Frequency | 20 kHz – 100 kHz |
| Power Consumption | 500W |
| Dimensions | 300 × 600 × 800 mm |
| Weight | 30 KG |
