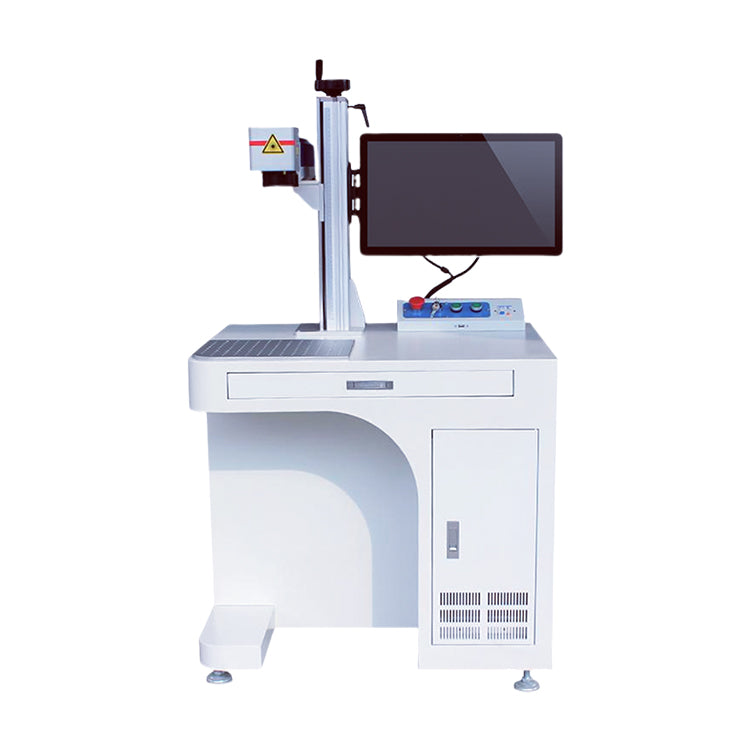

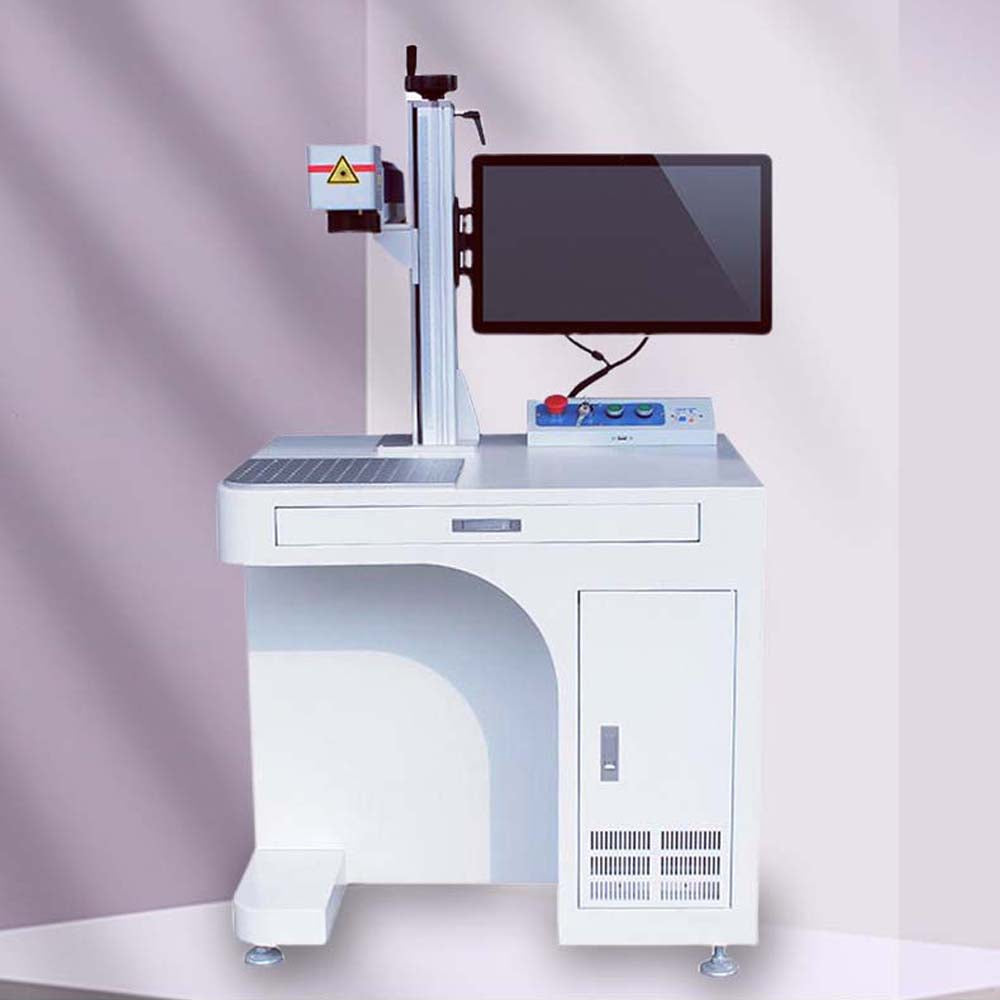

Fiber Laser Marking Machine
PRODUCT DETAILS
This Fiber Laser Marking Machine is a cutting-edge tool that uses a laser beam to engrave or mark various materials with precision and speed. With its high-tech fiber laser, it offers a 99% success rate and can handle complex designs with ease. Perfect for enhancing product branding and traceability.

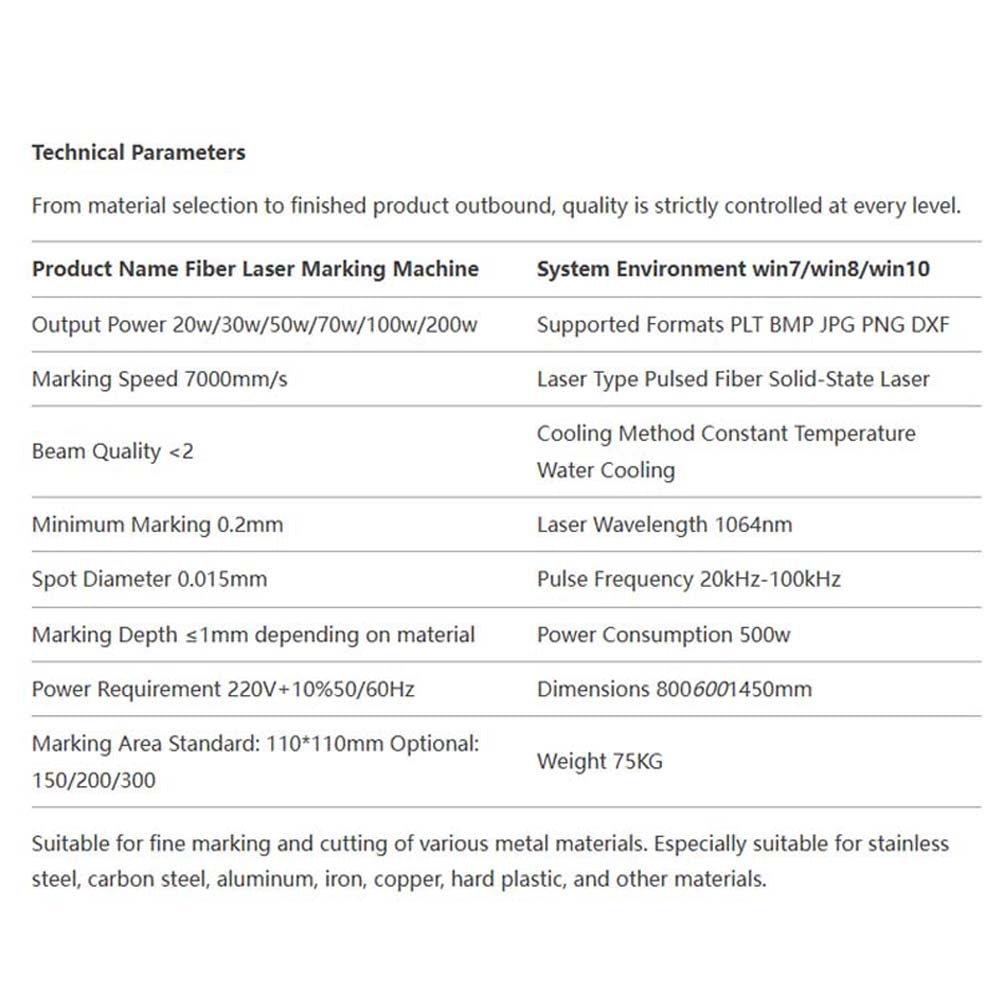

| Specification | Description |
|---|
| Output Power | 20W / 30W / 50W / 70W / 100W / 200W |
| Marking Speed | 7000 mm/s |
| Beam Quality | <2 |
| Minimum Marking Size | 0.2 mm |
| Spot Diameter | 0.015 mm |
| Marking Depth | ≤1 mm (depending on material) |
| Power Requirement | 220V ±10%, 50/60Hz |
| Marking Area | Standard: 110×110 mm; Optional: 150 / 200 / 300 mm |
| Supported Formats | PLT, BMP, JPG, PNG, DXF |
| Laser Type | Pulsed Fiber Solid-State Laser |
| Cooling Method | Constant Temperature Water Cooling |
| Laser Wavelength | 1064 nm |
| Pulse Frequency | 20 kHz – 100 kHz |
| Power Consumption | 500W |
| Dimensions | 800×600×1450 mm |
| Weight | 75 KG |
