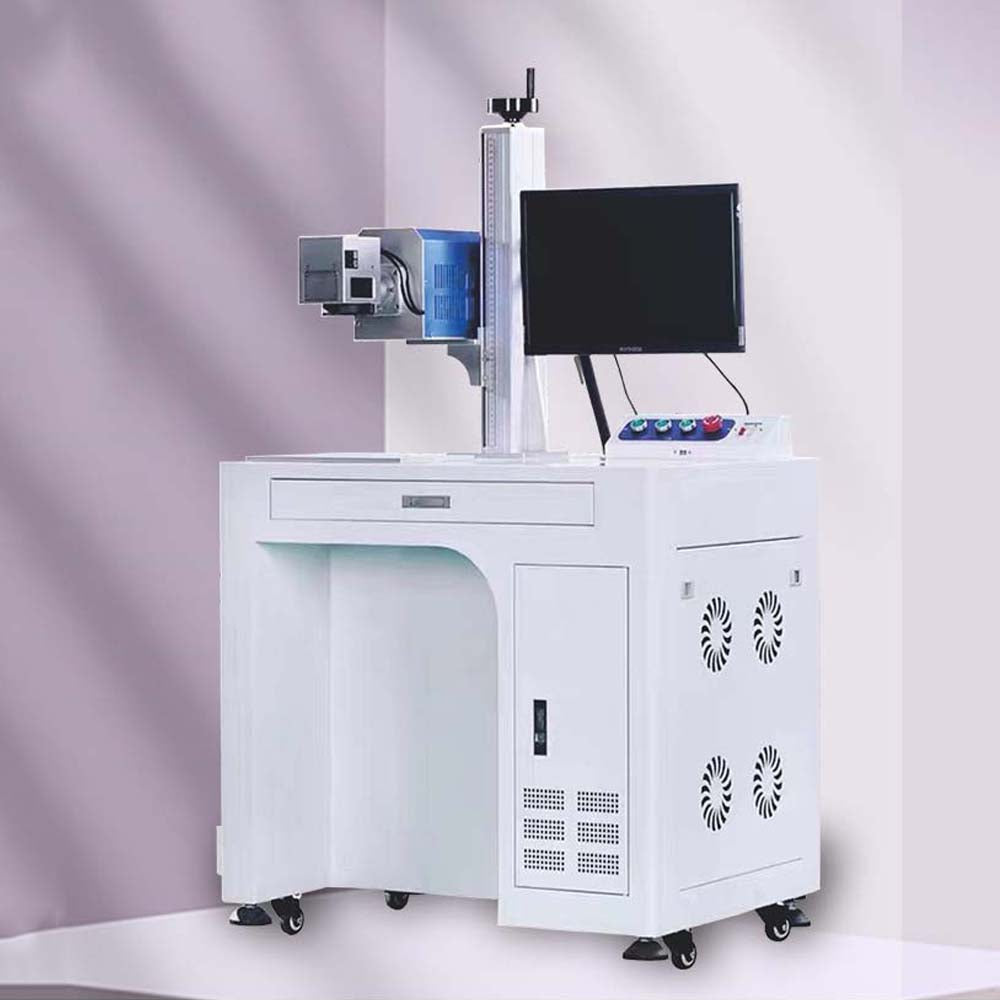

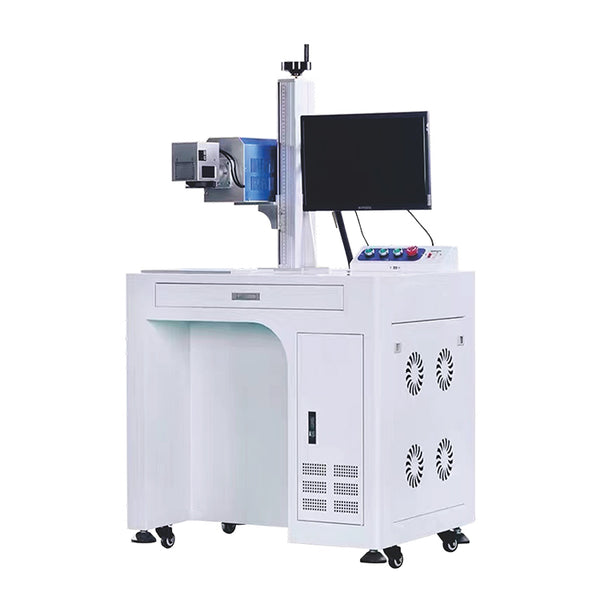

CO2 Laser Marking Machine
PRODUCT DETAILS
The CO2 Laser Marking Machine utilizes advanced technology to create precise and permanent markings on a variety of materials. With its high efficiency and accuracy, this machine is perfect for industrial and commercial applications, providing a cost-effective solution for your marking needs.

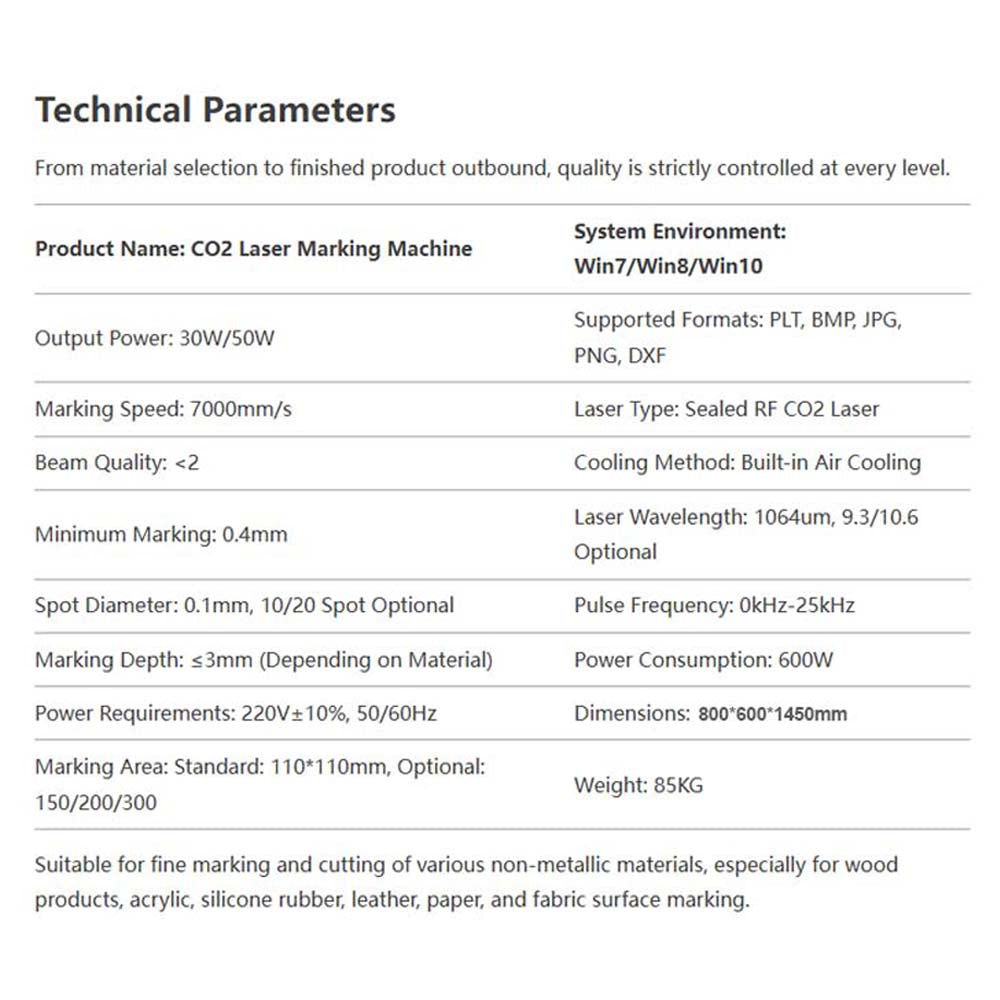

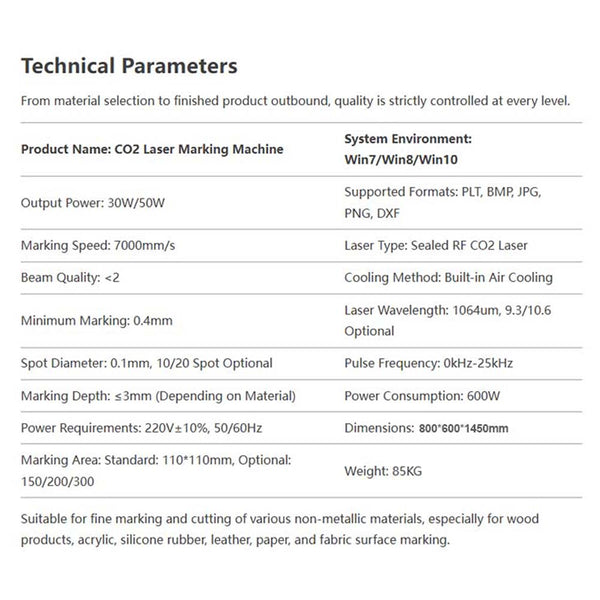

| Specification | Description |
|---|---|
| Output Power | 30W / 50W |
| Marking Speed | 7000 mm/s |
| Beam Quality | <2 |
| Minimum Marking | 0.4 mm |
| Spot Diameter | 0.1 mm (Optional: 10 / 20 Spot) |
| Marking Depth | ≤3 mm (Depending on material) |
| Power Requirements | 220V ±10%, 50 / 60Hz |
| Marking Area | Standard: 110×110 mm; Optional: 150 / 200 / 300 mm |
| Supported Formats | PLT, BMP, JPG, PNG, DXF |
| Laser Type | Sealed RF CO₂ Laser |
| Cooling Method | Built-in Air Cooling |
| Laser Wavelength | 1064 µm, 9.3 / 10.6 µm Optional |
| Pulse Frequency | 0 kHz – 25 kHz |
| Power Consumption | 600W |
| Dimensions | 800 × 600 × 1450 mm |
| Weight | 85 KG |
