Device parameters
Unit type	WLD-1500W
Maximum laser power	1500W	2000W
The laser wavelength	1064nm
Condenser reflector	Imported ceramic condenser
The laser frequency	1-20Hz
The pulse width	0.1-10Ms
Spot adjustment range	0.3-2mm

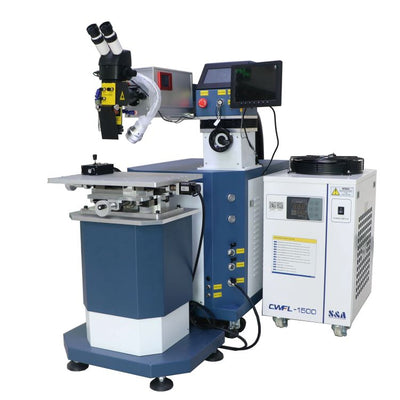

Aimed at positioning	Microscope (optional camera system)
The engine power	8KW
Demand for electricity	380V±5V 50Hz/40A /220V±5V 50Hz/60A
Range of three dimensional load-bearing table	125×100×300mm
bearing capacity of three dimensional load-bearing table	150kg

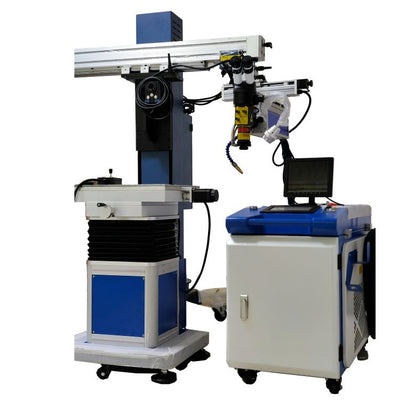

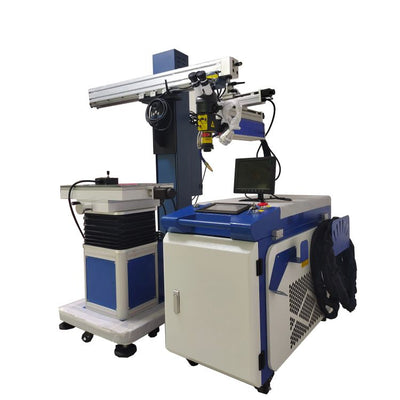

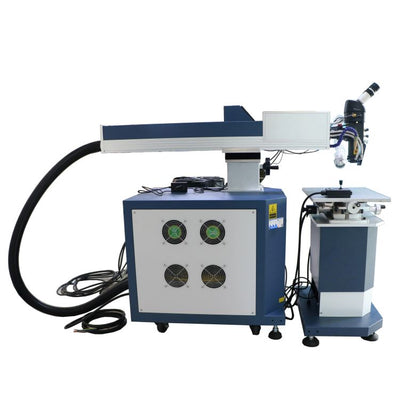

Manual suspension arm	Lifting height		600mm
	stretch scope		3m
External dimensions/net weight	Host computer: 1000×550×1150mm		103kg
	Three dimensional load-bearing table: 550×400×700mm		57kg
	Manual suspension arm: 1050×1250×1700mm		147kg

Product Details

1. Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;

2. equipped with 1.5P special chiller, can meet the long-term, high-power welding stability;

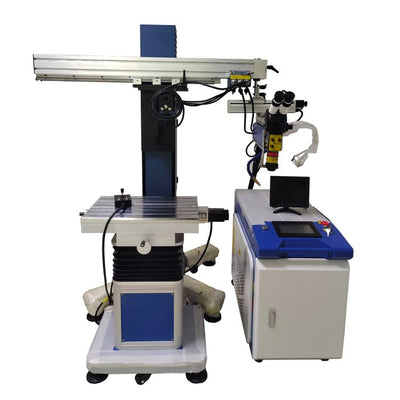

3.The base of the workbench is electrically lifted and lowered. The workbench moves using precision ball screw and high-precision straight guide rail. It is light and flexible, with precise positioning and bearing capacity up to 200 kg.

4. the laser head can slide back and forth, manual lifting, the laser head can be easily rotated 180 degrees, convenient to repair any side;

5. remote control all-round control, 360 degree flexible adjustment of welding angle position, suitable for all kinds of mold welding, for large molds, you can use the workbench, directly on the ground or forklift for mold welding, you can repair the welding radius of 1.5 meters, the weight of the number Tons of large molds and equipment The spare pulley is convenient to move, and can be moved directly to the injection molding machine to directly repair the welding without removing the mold;

6. the welding depth is large,the welding is more firm, the welded part can be fully melted without pores and trachoma, and the repair marks are neat and
beautiful.

Laser source MAX/RAYCUS/JPT

With the longer service life of the third-generation fiber laser, the equipment is not afraid of the optical path changes caused by movement; it is suitable for long-term processing;

Device Configuration

1. A set of laser source（MAX/JPT/Raycus）; 2. A set of laser power supplies; 3. A set of optical systems; 4. A set of movable and movable optical benches; 5. A set of liquid crystal display systems; 6. A set of refrigeration and water flow water temperature detection and protection systems; 7. One microscope; 8. A set of workbenches;
